Settings Screen

Description

<settings-screen></settings-screen>

The settings-screen component renders the in-game options panel where players adjust their Player Preferences: the per-source audio volumes, the typewriter text speed, the auto-play delay, the game/UI language (for multi-language games) and, on desktop builds, the window resolution. Every control reads its initial value from the saved preference and writes the player’s choice straight back to it, so the changes persist between sessions.

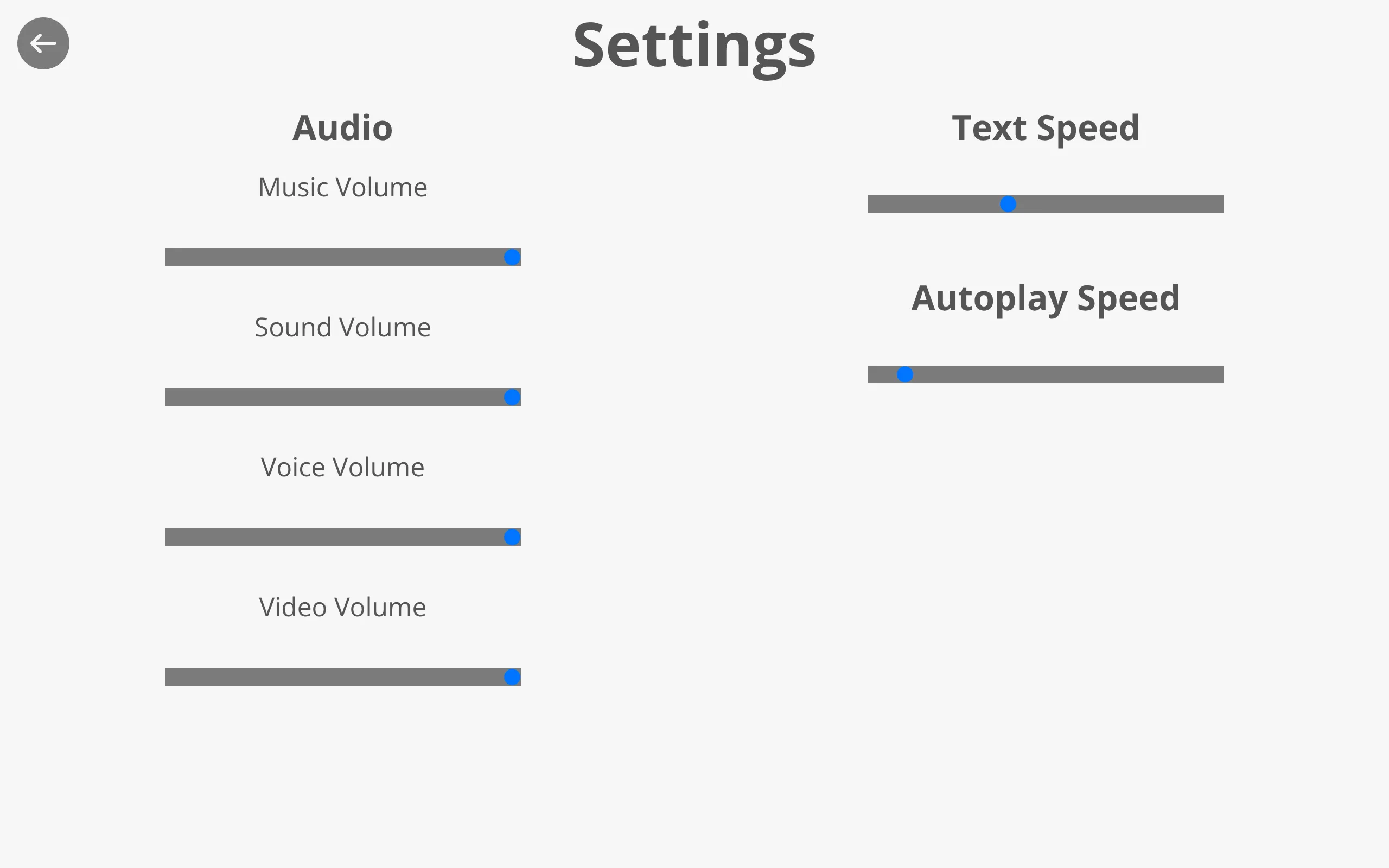

The default settings screen
The settings screen — per-source volume sliders, text speed, and auto-play speed (language and resolution appear when enabled).

Source Code: https://github.com/Monogatari/Monogatari/tree/develop/src/components/settings-screen

Usage

The settings-screen is a screen component, so it is shown and hidden like any other screen:

// Open the settings screen
monogatari.showScreen('settings');

While a game is playing, pressing Esc toggles between the game and the settings screen.

Structure

The settings-screen renders the following structure:

<settings-screen data-component="settings-screen" data-screen="settings">
    <button class="top left" data-action="back"><span class="fas fa-arrow-left"></span></button>
    <h2 data-string="Settings">Settings</h2>
    <div class="settings">
        <div class="settings-group">
            <div data-settings="audio" class="vertical vertical--center text--center" data-content="audio-settings">
                <h3 data-string="Audio">Audio</h3>
                <span data-string="Music">Music Volume:</span>
                <input type="range" min="0.0" max="1.0" step="0.1" data-action="set-volume" data-target="music">
                <span data-string="Sound">Sound Volume:</span>
                <input type="range" min="0.0" max="1.0" step="0.1" data-action="set-volume" data-target="sound">
                <span data-string="Voice">Voice Volume:</span>
                <input type="range" min="0.0" max="1.0" step="0.1" data-action="set-volume" data-target="voice">
                <span data-string="Video">Video Volume:</span>
                <input type="range" min="0.0" max="1.0" step="0.1" data-action="set-volume" data-target="video">
            </div>
        </div>

        <div class="settings-group">
            <div data-settings="text-speed">
                <h3 data-string="TextSpeed">Text Speed</h3>
                <input type="range" min="1" max="50" step="1" data-action="set-text-speed">
            </div>

            <div data-settings="auto-play-speed">
                <h3 data-string="AutoPlaySpeed">Auto Play Speed</h3>
                <input type="range" min="0" max="60" step="1" data-action="set-auto-play-speed" data-content="auto-play-speed-controller">
            </div>

            <div data-settings="language" data-content="language-settings">
                <h3 data-string="Language">Language</h3>
                <div class="horizontal horizontal--center" data-content="wrapper"></div>
            </div>

            <div data-settings="resolution" data-platform="desktop">
                <h3 data-string="Resolution">Resolution</h3>
                <div class="horizontal">
                    <select data-action="set-resolution"></select>
                    <span class="fas fa-sort" data-select="set-resolution"></span>
                </div>
            </div>
        </div>
    </div>
</settings-screen>

The data-screen="settings" attribute is added automatically by the base screen component, and active is toggled on the element when the screen is opened.

NOTE

The language and resolution sections are not always present at runtime. The language dropdown is only built when the MultiLanguage setting is true; otherwise the whole language-settings block is removed. The resolution block is only kept on desktop (Electron / Electrobun) builds; on the web it is removed.

State

The settings-screen inherits its state from the base screen component.

Property Type Default Description
open boolean false Whether the screen is currently open. When true, the active class is added to the element.

Controls and Preferences

Each control maps to a value in Player Preferences. The screen initializes every control from the matching preference when the engine finishes initializing, and writes the new value back when the player interacts with it.

Control Element Action Preference written
Music volume input[type="range"] (data-target="music") set-volume Volume.Music
Sound volume input[type="range"] (data-target="sound") set-volume Volume.Sound
Voice volume input[type="range"] (data-target="voice") set-volume Volume.Voice
Video volume input[type="range"] (data-target="video") set-volume Volume.Video
Text speed input[type="range"] (1–50) set-text-speed TextSpeed
Auto play speed input[type="range"] (0–60) set-auto-play-speed AutoPlaySpeed
Language select[data-action="set-language"] set-language Language
Resolution select[data-action="set-resolution"] set-resolution Resolution

Notes on specific controls:

  • Volume sliders range from 0.0 (muted) to 1.0 (full). Their handler applies the new volume to the matching media players immediately and saves the value into the Volume preference object.
  • Text speed ranges from 1 (fastest) to 50 (slowest). Lower values display dialog faster.
  • Auto play speed ranges from 0 to 60 seconds. The maximum allowed value is clamped to the MaxAutoPlaySpeed setting, and on mount the screen sets MaxAutoPlaySpeed from the slider’s max attribute.
  • Language is a dropdown listing every language present in the loaded script. Selecting one updates the Language preference and re-localizes the UI and game immediately.

TIP

The label icons next to the Language and Resolution dropdowns carry a data-select attribute. Clicking the label focuses and opens the corresponding <select>, which makes the custom-styled dropdowns easier to use.

Content Areas

The component exposes the following named content areas (via [data-content="…"]).

Name Selector Description
audio-settings [data-content="audio-settings"] Container for the audio volume sliders. On iOS this is replaced with the iOSAudioWarning message.
language-settings [data-content="language-settings"] The whole language section. Removed when MultiLanguage is false.
wrapper [data-content="wrapper"] Holds the language <select> that is generated for multi-language games.
language-selector [data-content="language-selector"] The generated language <select> element.
auto-play-speed-controller [data-content="auto-play-speed-controller"] The auto-play speed range input.

WARNING

On iOS the individual audio sliders cannot work because the device controls volume through the system, so the audio area is replaced with the iOSAudioWarning string instead of the sliders.

Desktop (Electron) Resolution

The resolution dropdown is only active on desktop builds. When the desktop bridge is available, the screen requests the window’s size constraints and, if the window is not freely resizable (because ForceAspectRatio is set to Global), populates the dropdown with valid windowed sizes plus a full-screen option. Choosing an option resizes the window and stores the chosen value in the Resolution preference.

If the window is freely resizable, the resolution section is hidden. On the web, the data-platform="desktop" block is removed entirely.

// Default resolution used by desktop builds
monogatari.preferences({
    'Resolution': '1280x720'
});

NOTE

The Resolution preference and this dropdown only affect Electron / Electrobun desktop builds. They have no effect on web-deployed games.

Localization

The screen uses data-string attributes for translatable text:

String Key Default Description
Settings “Settings” Screen title
Audio “Audio” Audio section heading
Music “Music Volume” Music slider label
Sound “Sound Volume” Sound slider label
Voice “Voice Volume” Voice slider label
Video “Video Volume” Video slider label
TextSpeed “Text Speed” Text speed section heading
AutoPlaySpeed “Autoplay Speed” Auto-play section heading
Language “Language” Language section heading
Resolution “Resolution” Resolution section heading
iOSAudioWarning “Audio settings are not supported on iOS” Shown in place of the sliders on iOS
Windowed “Windowed” Prefix for windowed resolution options (desktop)
FullScreen “Full Screen” Full-screen resolution option (desktop)

Styling

The settings-screen can be styled with CSS against its real selectors:

/* The screen itself */
settings-screen {
    /* Your styles */
}

/* Only when the screen is open */
settings-screen.active {
    /* Visible state */
}

/* Audio section */
settings-screen [data-content="audio-settings"] {
    /* Volume sliders container */
}

/* Range inputs and selects */
settings-screen input,
settings-screen select {
    margin: 2rem;
    background-color: transparent;
}

/* The two settings columns */
settings-screen .settings {
    display: flex;
    flex-direction: column;
    gap: 1rem;
}

/* Resolution section (desktop only) */
settings-screen [data-settings="resolution"] {
    /* Resolution dropdown container */
}

Customizing

Restyle a section

Each settings group is a data-settings="…" block, and a few have named data-content regions. Target them directly to restyle or rearrange the screen:

/* The audio sliders block */
settings-screen [data-content="audio-settings"] {
    /* Your styles */
}

/* The text speed block */
settings-screen [data-settings="text-speed"] {
    /* Your styles */
}

/* The auto-play block (the slider has its own content name) */
settings-screen [data-content="auto-play-speed-controller"] {
    /* Your styles */
}

Hide a control

To remove a control entirely, override the structure with the template() function and drop the data-settings block you don’t want. For example, to ship a game with no language picker, leave out the data-settings="language" / data-content="language-settings" block. (Keeping the MultiLanguage setting false already removes that block at runtime, so you only need a custom template for controls that have no setting to disable them.)

NOTE

If you change the structure, keep the data-action attributes (set-volume, set-text-speed, set-auto-play-speed, set-language, set-resolution) on the controls you keep, since those are what wire each control to its preference.
