Show Canvas

Description

'show canvas <object_id> <mode> [with [...classes]]'

Action ID: Canvas

Reversible: Yes

Requires User Interaction: Depends on the mode the canvas is displayed on

Parameters

Name Optional Description

object_id No The ID of a canvas object previously defined.

Name	Optional	Description
`object_id`	No	The ID of a canvas object previously defined.
`mode`	No	Defines what way you want to show the canvas like. Possible Values: `modal` - Shows the canvas as a modal overlay `displayable` - Shows the canvas in the displayable area `immersive` - Shows the canvas covering the full game screen `background` - Shows the canvas as a background for your characters `character` - Shows the canvas in the character display area
`...classes`	Yes	List of CSS classes to add to the component.

mode

Defines what way you want to show the canvas like.

Possible Values:

modal - Shows the canvas as a modal overlay
displayable - Shows the canvas in the displayable area
immersive - Shows the canvas covering the full game screen
background - Shows the canvas as a background for your characters
character - Shows the canvas in the character display area

...classes Yes List of CSS classes to add to the component.

Canvas Objects

{
    layers: [],
    props: {},
    state: {},
    start: function (layers, props, state, container) {
        // In here we do everything we need to start
        // our canvas and perform the updates
        // Note: 'this' refers to the Monogatari engine instance
    },
    stop: function (layers, props, state, container) {
        // Any actions we need to perform to stop the
        // canvas such as canceling animations and
        // freeing resources before the element gets removed
        // Note: 'this' refers to the Monogatari engine instance
    },
    resize: function (layers, props, state, container) {
        // Perform any actions required when the window
        // gets resized, it's useful for reacting to this
        // changes by changing your canvas width and height.
        // Note: 'this' refers to the Monogatari engine instance
    },
}

Property	Type	Description
`layers`	`Array<string>`	Most of the times, a single canvas HTML element is not enough to represent all we require and it may not be efficient either since it would have to re-draw all its elements every time we needed to clear it. The layers property is a list of strings (names of layers) that you want your canvas to have. A HTML canvas element with a `data-layer` property will be created for every layer you list here. If none is provided, a single canvas will be created with a default `base` layer. Note: When passed to the `start`, `stop`, and `resize` functions, `layers` is an object mapping layer names to their corresponding HTMLCanvasElement instances (e.g., `{ sky: HTMLCanvasElement, stars: HTMLCanvasElement }` or `{ base: HTMLCanvasElement }`). You can destructure this object in your function parameters.
`props`	`object`	The props object provides a place to add any static functions or variables you might want to share between your object functions. These are properties that don't change throughout the execution of your canvas object.
`state`	`object`	The state object provides a place where you can add any variables you wish to share between your object functions. These are properties you expect to change throughout the execution of your canvas object.
`start`	`function`	The function that will be called right after the HTML element for the canvas is created. In here, you should draw your contents to the layers you setup and setup any update required. The function receives `(layers, props, state, container)` as parameters, where `this` refers to the Monogatari engine instance.
`stop`	`function`	This function will be called by the `hide canvas` action to stop and remove your canvas. In here you should cancel any animations and free up any resources in use by your canvas. The function receives `(layers, props, state, container)` as parameters, where `this` refers to the Monogatari engine instance.
`resize`	`function`	This function will be called every time the window gets resized, it's useful for reacting to this changes by changing your canvas width and height. The function receives `(layers, props, state, container)` as parameters, where `this` refers to the Monogatari engine instance. Note: This function is only called for canvas objects with `background` or `immersive` modes.

Showing as a background

Defining the Object

The first thing we need to do is create our canvas object, we’ll call this one stars.

monogatari.action ('Canvas').objects ({
        stars: {

        }
});

We want two layers for it, one represents the sky and the other one is where the stars will be drawn, therefore, we’ll provide these layers to our object:

monogatari.action ('Canvas').objects ({
        stars: {
                layers: ['sky', 'stars'],
        }
});

Next, we’ll define the functions used to draw both the sky and stars in the object’s props property. We’re placing them there because we’ll want to re-draw the canvas when the window is resized so having them in a place that we can easily access from both the start and resize functions would be the best.

monogatari.action ('Canvas').objects ({
    stars: {
        layers: ['sky', 'stars'],
        props: {
            drawStar: (ctx, r) => {
                ctx.save();
                ctx.beginPath();
                ctx.moveTo(r, 0);
                for (let i = 0; i < 9; i++) {
                    ctx.rotate(Math.PI / 5);
                    if (i % 2 === 0) {
                        ctx.lineTo((r / 0.525731) * 0.200811, 0);
                    } else {
                        ctx.lineTo(r, 0);
                    }
                }
                ctx.closePath();
                ctx.fill();
                ctx.restore();
            },
            drawSky: (sky) => {
                const width = sky.width;
                const height = sky.height;
                const ctx = sky.getContext('2d');
                ctx.fillRect(0, 0, width, height);
                ctx.translate(width / 2, height / 2);

                // Create a circular clipping path
                ctx.beginPath();
                ctx.arc(0, 0, width * 0.4, 0, Math.PI * 2, true);
                ctx.clip();

                // draw background
                const lingrad = ctx.createLinearGradient(0, -1 * width / 2, 0, height / 2);
                lingrad.addColorStop(0, '#232256');
                lingrad.addColorStop(1, '#143778');

                ctx.fillStyle = lingrad;
                ctx.fillRect(-width/2, -height/2, width, height);
            },
            drawStars: (stars, drawStar) => {
                const width = stars.width;
                const height = stars.height;
                const ctx = stars.getContext('2d');
                // draw stars
                for (var j = 1; j < 50; j++) {
                    ctx.save();
                    ctx.fillStyle = '#fff';
                    ctx.translate(width - Math.floor(Math.random() * width), height - Math.floor(Math.random() * height));
                    drawStar(ctx, Math.floor(Math.random() * 4) + 2);
                    ctx.restore();
                }
            }
        },
    }
});

We’re now set to create our start function. On it we’ll use the functions we added on the props property to actually draw our canvas. This time we didn’t provided a state object because we don’t have any variable that will be changing.

monogatari.action ('Canvas').objects ({
    stars: {
        layers: ['sky', 'stars'],
        props: {
            drawStar: (ctx, r) => {
                ctx.save();
                ctx.beginPath();
                ctx.moveTo(r, 0);
                for (let i = 0; i < 9; i++) {
                    ctx.rotate(Math.PI / 5);
                    if (i % 2 === 0) {
                        ctx.lineTo((r / 0.525731) * 0.200811, 0);
                    } else {
                        ctx.lineTo(r, 0);
                    }
                }
                ctx.closePath();
                ctx.fill();
                ctx.restore();
            },
            drawSky: (sky) => {
                const width = sky.width;
                const height = sky.height;
                const ctx = sky.getContext('2d');
                ctx.fillRect(0, 0, width, height);
                ctx.translate(width / 2, height / 2);

                // Create a circular clipping path
                ctx.beginPath();
                ctx.arc(0, 0, width * 0.4, 0, Math.PI * 2, true);
                ctx.clip();

                // draw background
                const lingrad = ctx.createLinearGradient(0, -1 * width / 2, 0, height / 2);
                lingrad.addColorStop(0, '#232256');
                lingrad.addColorStop(1, '#143778');

                ctx.fillStyle = lingrad;
                ctx.fillRect(-width/2, -height/2, width, height);
            },
            drawStars: (stars, drawStar) => {
                const width = stars.width;
                const height = stars.height;
                const ctx = stars.getContext('2d');
                // draw stars
                for (var j = 1; j < 50; j++) {
                    ctx.save();
                    ctx.fillStyle = '#fff';
                    ctx.translate(width - Math.floor(Math.random() * width), height - Math.floor(Math.random() * height));
                    drawStar(ctx, Math.floor(Math.random() * 4) + 2);
                    ctx.restore();
                }
            }
        },
        start: function ({ sky, stars }, props, state, container) {
            let width = 150;
            let height = 150;

            if (container.props.mode === 'background') {
                width = this.width ();
                height = this.height ();
            }

            sky.width = width;
            sky.height = height;

            stars.width = width;
            stars.height = height;

            props.drawSky (sky);
            props.drawStars (stars, props.drawStar);

            return Promise.resolve ();
        }
});

Next, we’ll create our stop function. On canvas objects that feature animations this is a very important function since all animations need to be canceled. Otherwise, they will drain the memory of the browser even if they’re no longer being shown. In this case, we don’t have any animations but we’ll clear the canvas object completely when stopped.

monogatari.action ('Canvas').objects ({
    stars: {
        layers: ['sky', 'stars'],
        props: {
            drawStar: (ctx, r) => {
                ctx.save();
                ctx.beginPath();
                ctx.moveTo(r, 0);
                for (let i = 0; i < 9; i++) {
                    ctx.rotate(Math.PI / 5);
                    if (i % 2 === 0) {
                        ctx.lineTo((r / 0.525731) * 0.200811, 0);
                    } else {
                        ctx.lineTo(r, 0);
                    }
                }
                ctx.closePath();
                ctx.fill();
                ctx.restore();
            },
            drawSky: (sky) => {
                const width = sky.width;
                const height = sky.height;
                const ctx = sky.getContext('2d');
                ctx.fillRect(0, 0, width, height);
                ctx.translate(width / 2, height / 2);

                // Create a circular clipping path
                ctx.beginPath();
                ctx.arc(0, 0, width * 0.4, 0, Math.PI * 2, true);
                ctx.clip();

                // draw background
                const lingrad = ctx.createLinearGradient(0, -1 * width / 2, 0, height / 2);
                lingrad.addColorStop(0, '#232256');
                lingrad.addColorStop(1, '#143778');

                ctx.fillStyle = lingrad;
                ctx.fillRect(-width/2, -height/2, width, height);
            },
            drawStars: (stars, drawStar) => {
                const width = stars.width;
                const height = stars.height;
                const ctx = stars.getContext('2d');
                // draw stars
                for (var j = 1; j < 50; j++) {
                    ctx.save();
                    ctx.fillStyle = '#fff';
                    ctx.translate(width - Math.floor(Math.random() * width), height - Math.floor(Math.random() * height));
                    drawStar(ctx, Math.floor(Math.random() * 4) + 2);
                    ctx.restore();
                }
            }
        },
        start: function ({ sky, stars }, props, state, container) {
            let width = 150;
            let height = 150;

            if (container.props.mode === 'background') {
                width = this.width ();
                height = this.height ();
            }

            sky.width = width;
            sky.height = height;

            stars.width = width;
            stars.height = height;

            props.drawSky (sky);
            props.drawStars (stars, props.drawStar);

            return Promise.resolve ();
        },
        stop: ({ sky, stars }, props, state, container) => {
            sky.getContext('2d').clearRect (0, 0, sky.width, sky.height);
            stars.getContext('2d').clearRect (0, 0, stars.width, stars.height);
        }
});

Finally, since we mentioned we wanted to re-draw our canvas when the window got resized (to make it always fit the entire screen), we’ll create our resize function with code very similar to our start function.

monogatari.action ('Canvas').objects ({
    stars: {
        layers: ['sky', 'stars'],
        props: {
            drawStar: (ctx, r) => {
                ctx.save();
                ctx.beginPath();
                ctx.moveTo(r, 0);
                for (let i = 0; i < 9; i++) {
                    ctx.rotate(Math.PI / 5);
                    if (i % 2 === 0) {
                        ctx.lineTo((r / 0.525731) * 0.200811, 0);
                    } else {
                        ctx.lineTo(r, 0);
                    }
                }
                ctx.closePath();
                ctx.fill();
                ctx.restore();
            },
            drawSky: (sky) => {
                const width = sky.width;
                const height = sky.height;
                const ctx = sky.getContext('2d');
                ctx.fillRect(0, 0, width, height);
                ctx.translate(width / 2, height / 2);

                // Create a circular clipping path
                ctx.beginPath();
                ctx.arc(0, 0, width * 0.4, 0, Math.PI * 2, true);
                ctx.clip();

                // draw background
                const lingrad = ctx.createLinearGradient(0, -1 * width / 2, 0, height / 2);
                lingrad.addColorStop(0, '#232256');
                lingrad.addColorStop(1, '#143778');

                ctx.fillStyle = lingrad;
                ctx.fillRect(-width/2, -height/2, width, height);
            },
            drawStars: (stars, drawStar) => {
                const width = stars.width;
                const height = stars.height;
                const ctx = stars.getContext('2d');
                // draw stars
                for (var j = 1; j < 50; j++) {
                    ctx.save();
                    ctx.fillStyle = '#fff';
                    ctx.translate(width - Math.floor(Math.random() * width), height - Math.floor(Math.random() * height));
                    drawStar(ctx, Math.floor(Math.random() * 4) + 2);
                    ctx.restore();
                }
            }
        },
        start: function ({ sky, stars }, props, state, container) {
            let width = 150;
            let height = 150;

            if (container.props.mode === 'background') {
                width = this.width ();
                height = this.height ();
            }

            sky.width = width;
            sky.height = height;

            stars.width = width;
            stars.height = height;

            props.drawSky (sky);
            props.drawStars (stars, props.drawStar);

            return Promise.resolve ();
        },
        stop: ({ sky, stars }, props, state, container) => {
            sky.getContext('2d').clearRect (0, 0, sky.width, sky.height);
            stars.getContext('2d').clearRect (0, 0, stars.width, stars.height);
        },
        resize: function ({ sky, stars }, props, state, container) {
            if (container.props.mode === 'background') {
                const width = this.width ();
                const height = this.height ();

                sky.getContext('2d').clearRect (0, 0, sky.width, sky.height);
                stars.getContext('2d').clearRect (0, 0, stars.width, stars.height);

                sky.width = width;
                sky.height = height;

                stars.width = width;
                stars.height = height;

                props.drawSky (sky);
                props.drawStars (stars, props.drawStar);
            }
        }
    }
});

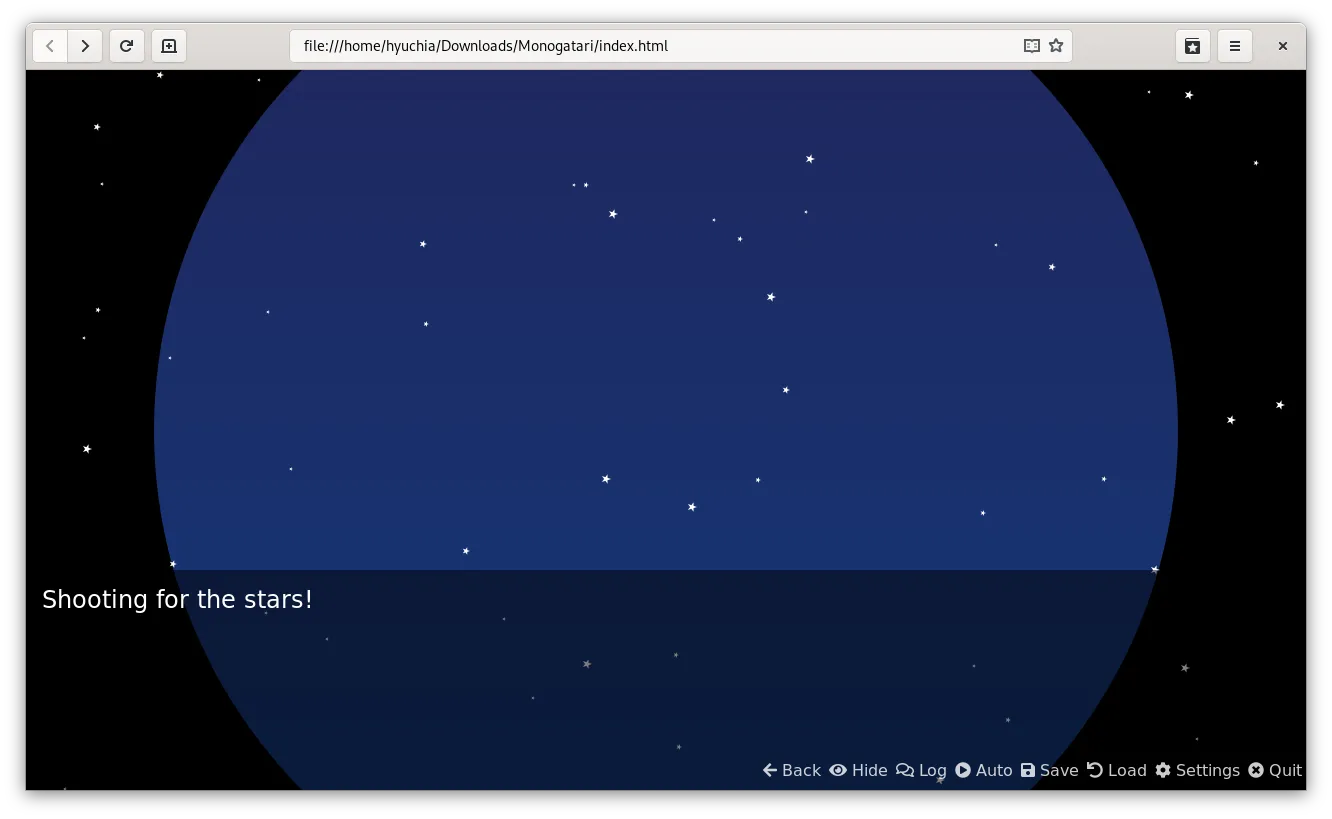

Using it in our script

Once we’ve got our canvas object setup, we can go ahead and show it in our game.

monogatari.script ({
    // The game starts here.
    'Start': [
        'show canvas stars background with fadeIn',
        'Shooting for the stars!',
        'end'
    ]
});
